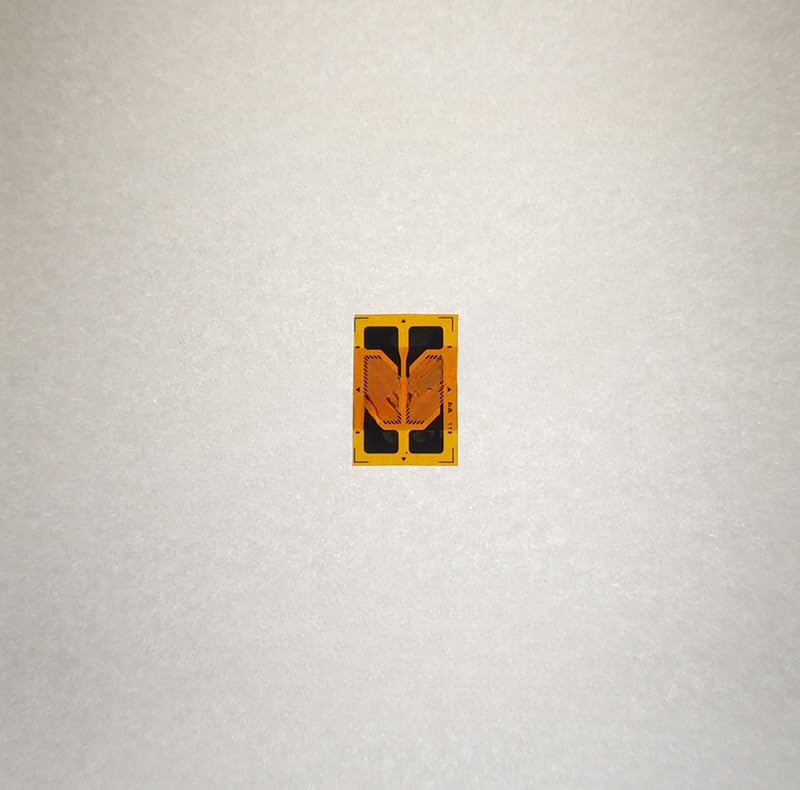

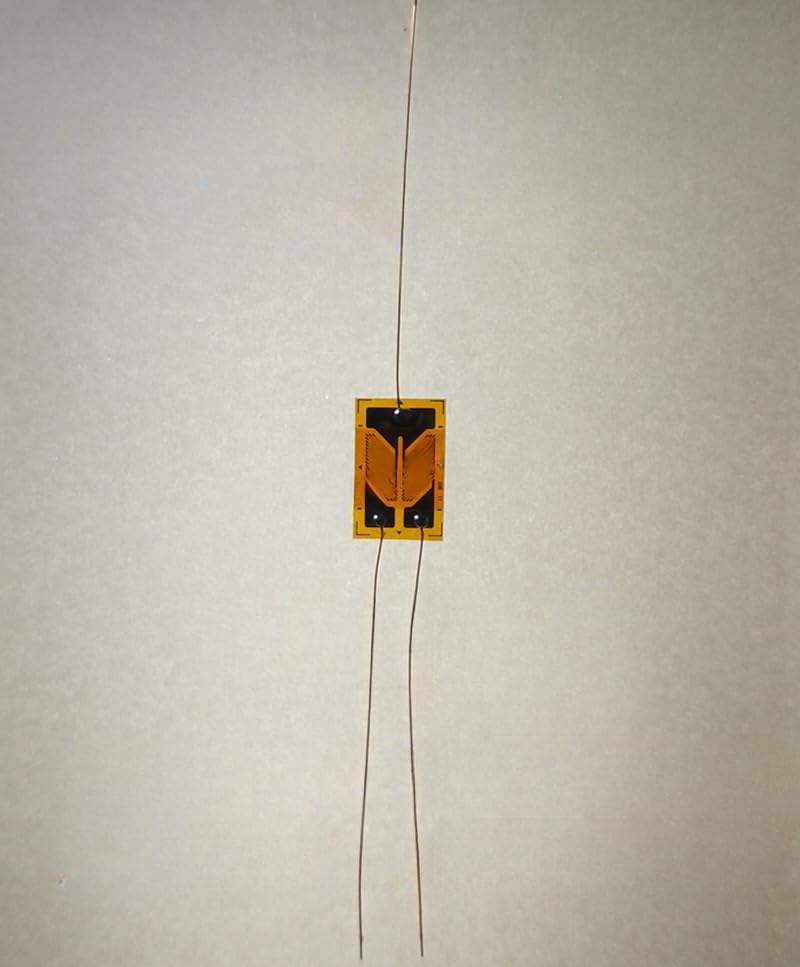

10Pcs Torque/Torsional Strain Gauge with Leads Shear Strain gages 3HA Strain Gauge (4 Welding Points, 1000Ω)
Product details
| Management number | 220427232 | Release Date | 2026/05/03 | List Price | US$18.00 | Model Number | 220427232 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The dimensions of products with resistance values of 1000 ohms and 350 ohms are the same. The substrate size is 10.0x6.8mm, the wire mesh size is 5.0x3.0mm, the sensitivity is 2.0 ± 1%, and the lead wire is 3cm enameled wire. The specialized strain gauge for Torsional measurement consists of three solder joints with leads; The specialized strain gauge for torque measurement consists of four solder joints with leads. Pack of 10.
- The dimensions of products with resistance values of 1000 ohms and 350 ohms are the same. The substrate size is 10.0x6.8mm, the wire mesh size is 5.0x3.0mm, the sensitivity is 2.0 ± 1%, and the lead wire is 3cm enameled wire.
- The specialized strain gauge for Torsional( torque force) measurement consists of three solder joints with leads; The specialized strain gauge for torque measurement consists of four solder joints with leads.
- Pack of 10.
| Model | 1000Ω |
|---|---|
| Brand Name | Yufreyoo |
| Style Name | 1000Ω |
| Output Type | electrical signal |
| Part Number | YY-311 |
| Manufacturer | Yufreyoo |
| Included Components | Strain Gauge |
| Measurement Accuracy | ±1% |
| Specific Uses For Product | torque measurement, strain measurement due to torque |
