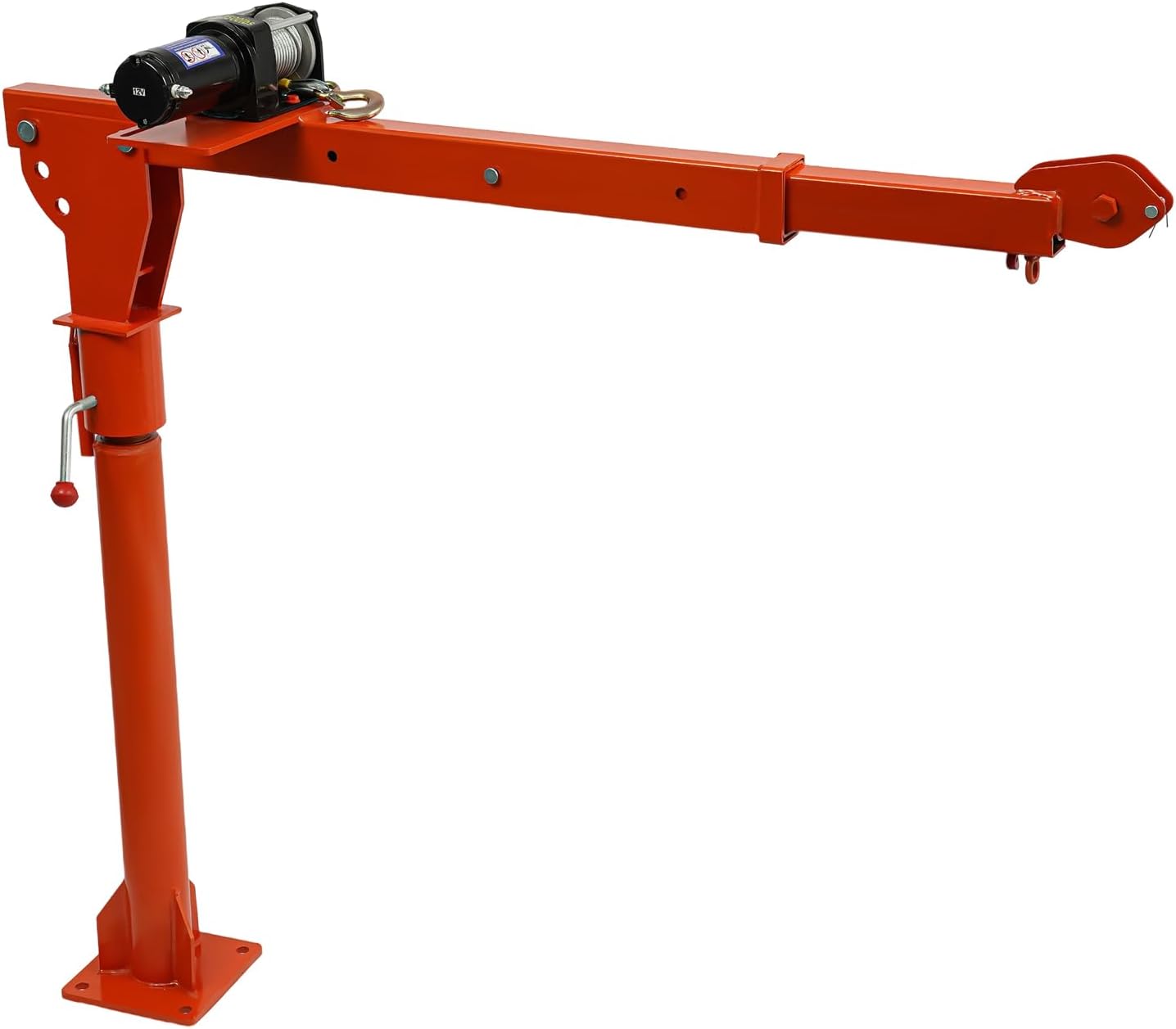

12V Truck Crane 1100lb Steel Truck Bed Crane Pickup Truck Crane 3500lb Winch Electric Hoist for Truck Bed 360°Swivel Motor Hoist Equipped Remote Control Lifting Arm Length Adjustable

SpecificationMaterial: Q235 Steel Surface Treatment: Polishing and Painting ProcessesAssembly Required: YesNumber of Items: 1Electric Winch Voltage: 12V Winch Rope Length: 7.5m/24.6ftBattery Model: 1 * AA Battery(Not Included) Electric Winch Capacity: 1587kg/3500lbLifting Arm Bearing Capacity: 100kg/220lb; 250kg/550lb; 500kg/1100lb Cable Length: 1.3m/4.27ftRemote Control Distance: 15m/49.21ftLifting Arm Height Adjustment Range: 0°-20°-40° Lifting Arm Length Adjustment Range: 1.1m/3.61ft; 1.325m/4.35ft; 1.5m/4.92ftBase Rotation Angle: 360 °Gross Weight: 43.2kg/95.2lbNet Weight: 34.7kg/76.5lb Support Pole Height: 1.05m/3.45ft Base Size: 24*24cm/9.45*9.45in Installation Hole Diameter: 17mm/0.67inProduct Size(L&H): 1.14*1.05-2.1m/3.74*3.45-6.89ftPackage Size: 124*32.5*28.5cm/48.82*12.79*11.22in Package Included1*Truck-Mounted Crane Hoist1*Electric Winch1*Remote Control Assembly All Accessories Required for InstallationNotes1.Please read the label carefully before using it. Please stay away from the area around the wire rope and drum.2.Please pull out the rope in the direction of the arrow. Please do not use it for overloaded lifting or moving personnel.3.Please take a 10-minute break after 30 minutes of continuous work. Please turn off the power switch when not in use.

• 【Build to Last】: Truck bed crane hoist uses Q235 steel and polishing and painting processes. Winch Rope 24.6ft wire rope can meet your basic needs without buying another one. Wire Rope Limit Pin ensures that the steel wire rope does not exceed its maximum tension range.
• 【Adjustable Design】: You can adjust the lifting arm length at 3.61/4.35/4.92ft and angle at 0°/20°/40° and the single boom truck cranes height from 3.45-6.89ft to meet your different construction environments and usage needs. The 360° rotatable base also brings more convenience during the lifting process.
• 【Stable Structure】: The large square base(9.45-in in length) with four screw-reinforced installation holes makes the truck-mounted crane highly stable, so you don't have to worry about shaking or collapsing during the production process.
• 【User-friendly Design】: The equipped remote control allows you to control the electric winch within a distance of 49.21ft, and it can also control the up and down directions (one is up, the other is down)greatly improving operation convenience.
• 【Strong Load-bearing Capacity】: The maximum 1100 lbs load capacity of the truck-mounted crane and 3500 lbs load capacity of the electric winch allow you to use this product with confidence to lift heavy objects such as engines, tables, and shop equipment.
