Ultra-Short 22mm Emergency Stop Switch with Wire 2NC 4Pin 2-Way; 7/8" Hole; IP65 Waterproof; 5 Amp 250VAC; 14mm Behind the Panel Space-Saving
Product details
| Management number | 221610678 | Release Date | 2026/05/03 | List Price | US$10.40 | Model Number | 221610678 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Package include : 1 emergency stop switch, 4 terminals, and 4 protective sleeves.

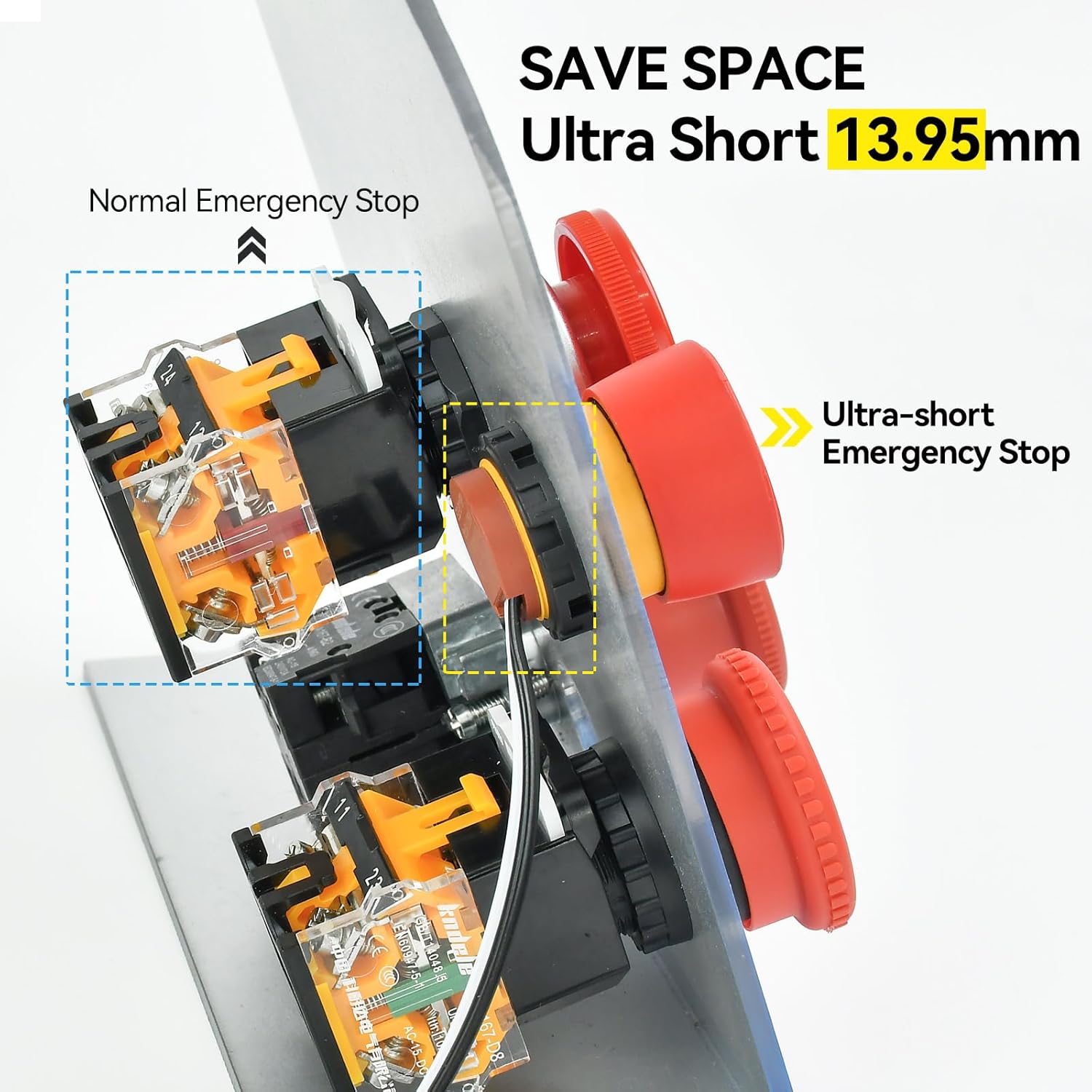

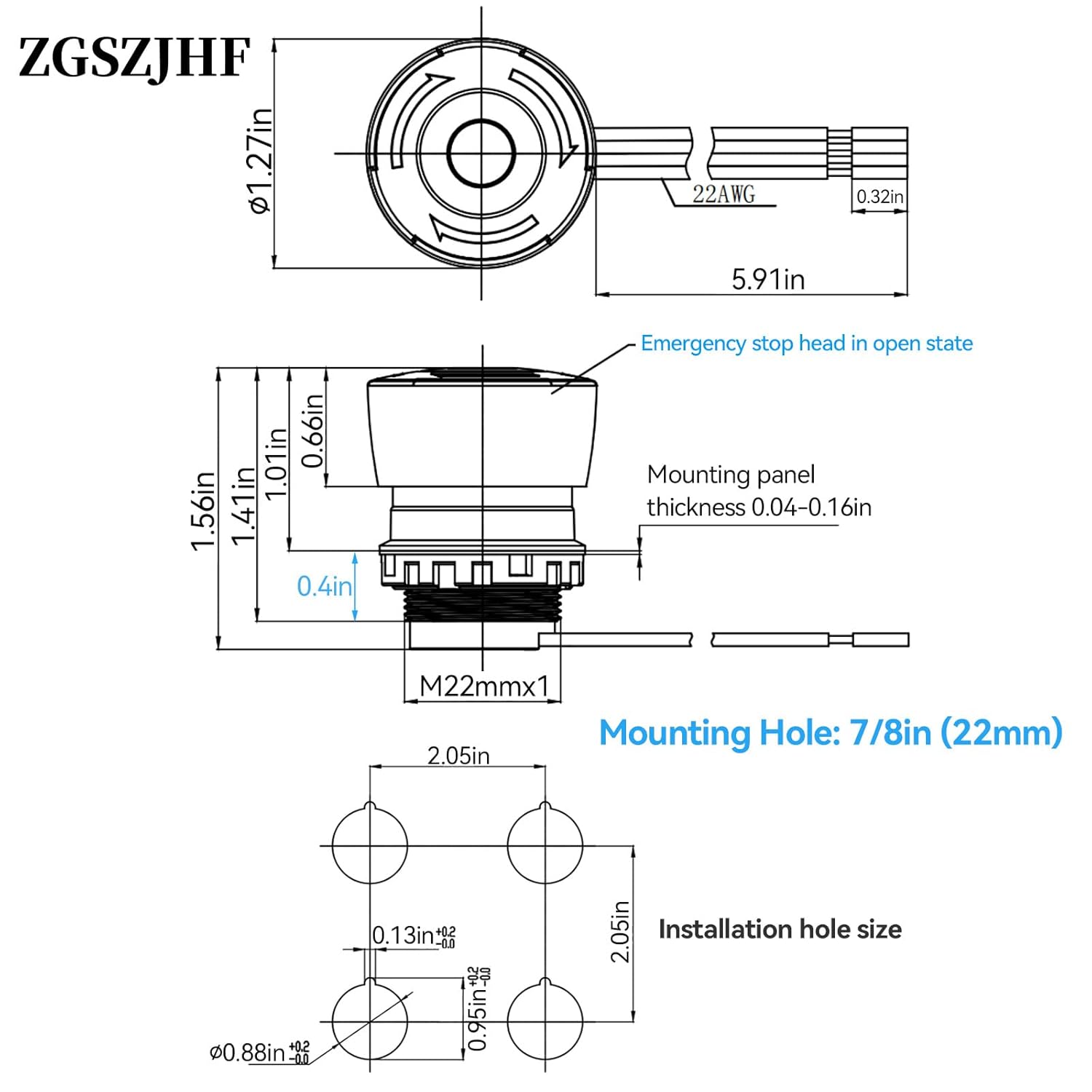

- Ultra-Short Space-Saving Design with Wire.Emergency stop button total length 39.7mm, Panel front: 25.75 mm (1.01"),Panel rear: 13.95 mm (0.55"). Ultra-compact build saves installation space. 7/8in (22mm) Mounting Hole. The wire length is 150mm, with 2 white and 2 black wires

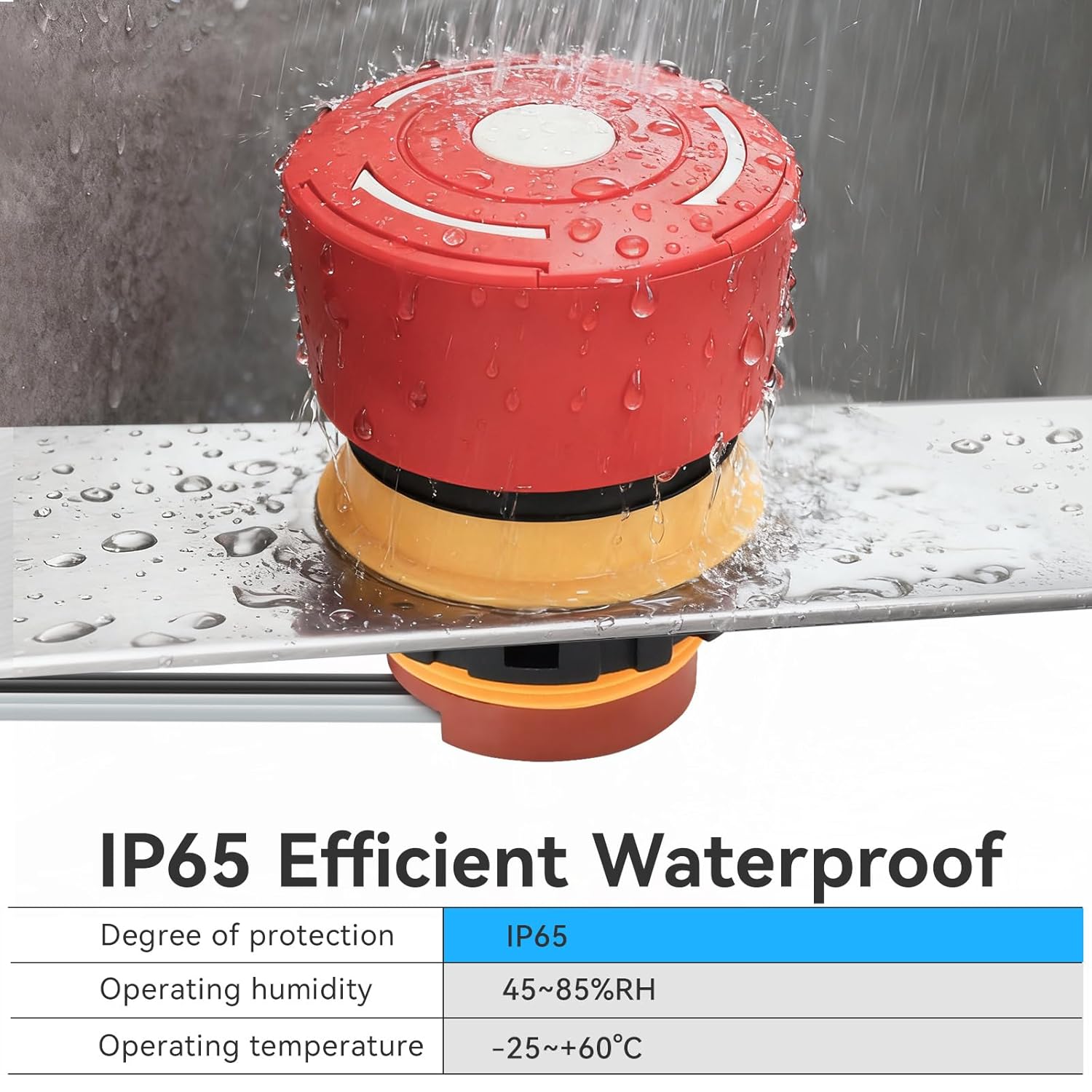

- Emergency stop switch IP65 Waterproof & Anti-Rotation Secure InstallationIP65 rated to resist dust and water spray; 22mm standard hole fits 1-4mm thick panels. Thread with fixed locking notch prevents rotation

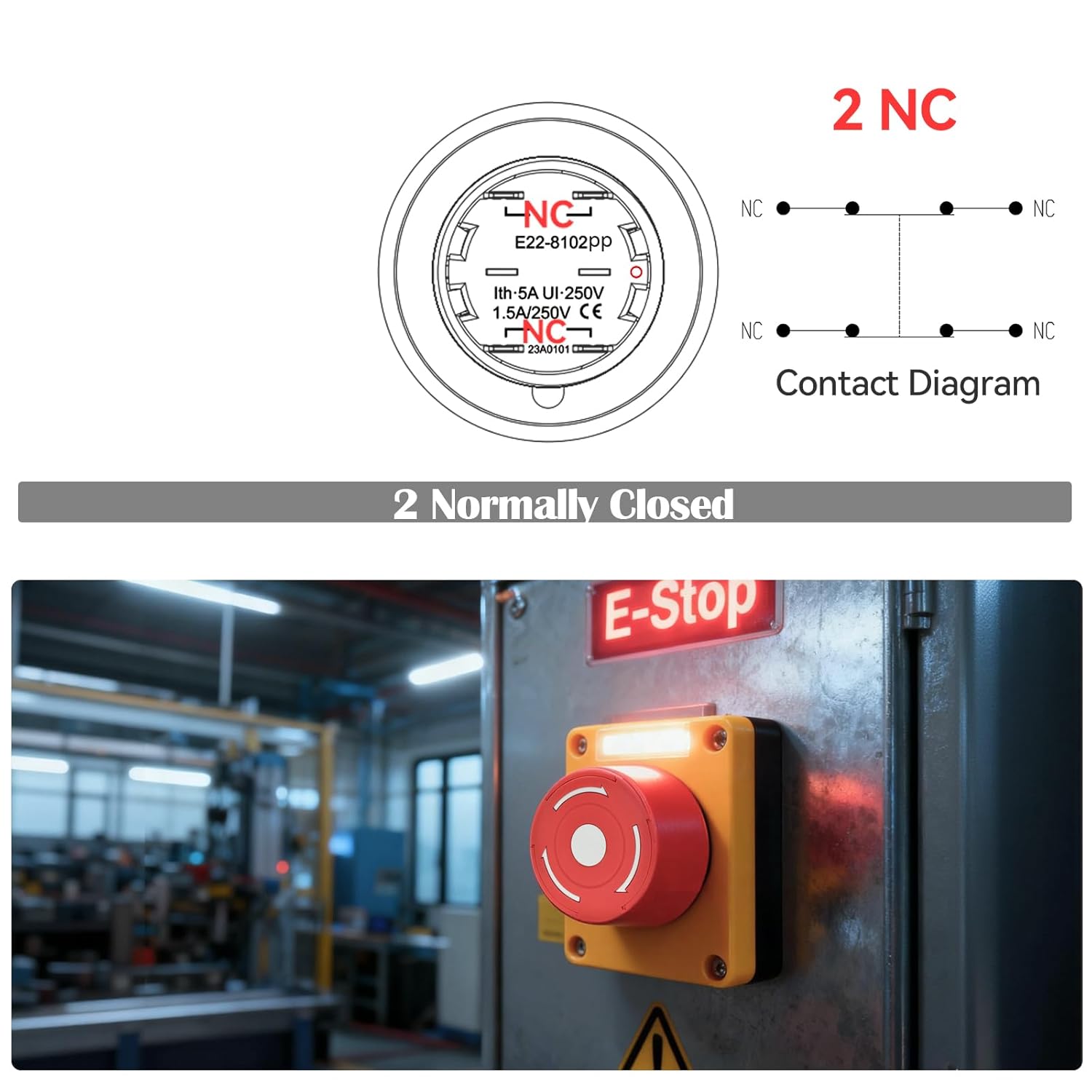

- Contact: DPST, 2 Normally Closed (2NC); 2-Way : Closed when not pressed, opens when activated. Solder terminals ensure stable disconnection
- 5 Amp 250V AC/DC high current and 5V DC 1mA low current. Meets emergency stop needs for heavy-duty motors, precision electronic instruments, and household electrical appliances
- 300,000-Cycle Long Mechanical LifeSturdy construction withstands frequent operations, ensuring long-term stability. Packaging: 1 Pcs Emergency Stop Switch 4 wire length of 5.91 inches
| Color | Red |
|---|---|
| Model | E22-8102PP |
| Terminal | Solder |
| Brand Name | ZGSZJHF |
| Unit Count | 1.0 Count |
| Part Number | E22-8102PP |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | 2 Normally Closed |
| Manufacturer | ZGSZJHF |
| Actuator Type | Push Button |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Current Rating | 5 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 1.27 x 1.27 x 1.56 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 250 Volts |
| Specification Met | CE, RoHS |
| Included Components | 1 Pcs Emergency Stop Switch |
| Warranty Description | If you have any questions, please contact us. |
| Upper Temperature Rating | 55 Degrees Celsius |
| International Protection Rating | IP65 |
